Technical specifications

Nominal voltage: 100-250V AC - 50/60Hz
Power: From 1.84kW to 3.68kW (depends on the charging current set)
Charging current: selectable among 8A, 10A and 16A
Stand-by power: <8W

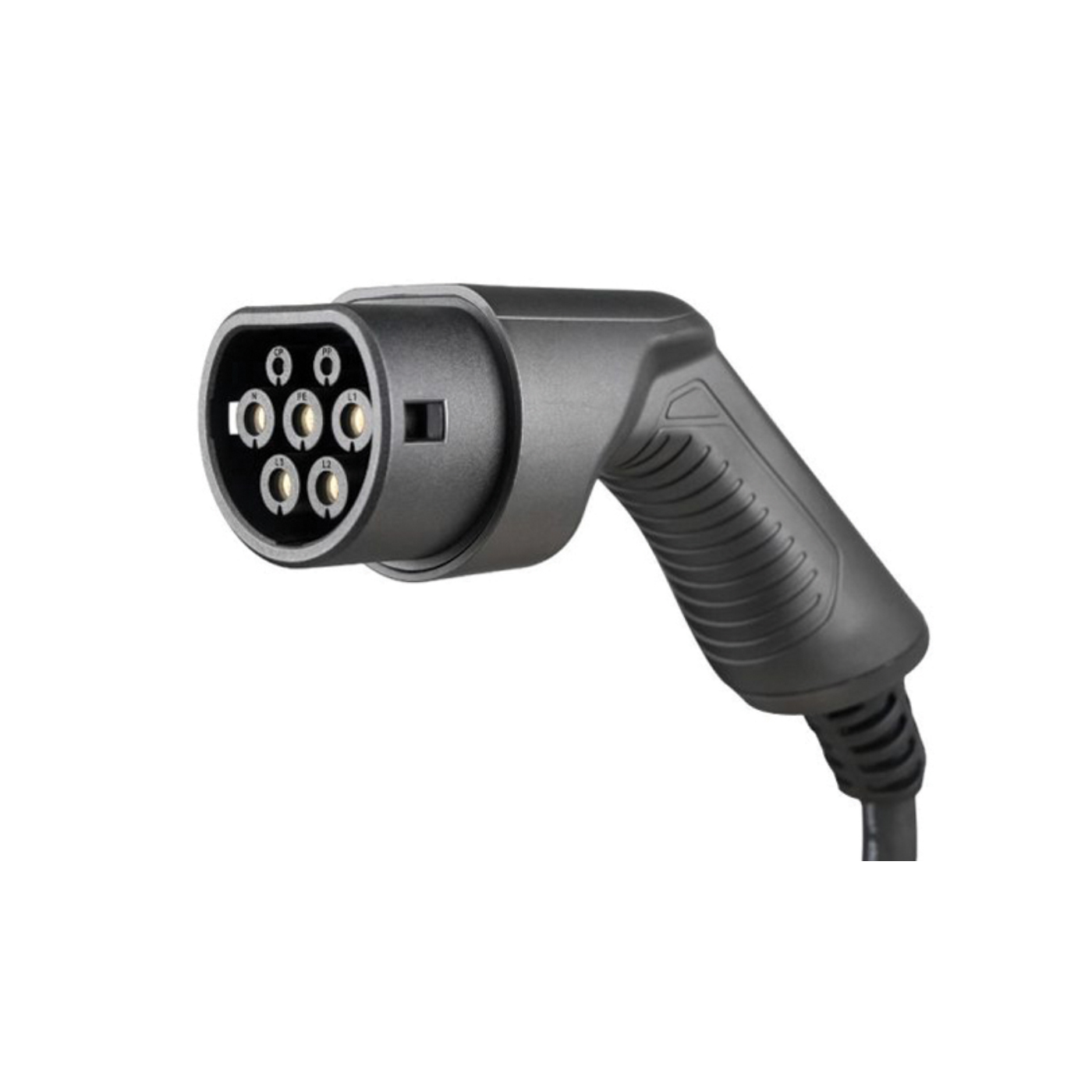

Output connector: IEC 62196-2 Type 2 female with cable of 380cm
Input cable: Schuko plug with cable of 140cm
Total connection length: Approximately 5m from Schuko input plug to charging connector
Ingress protection: IP66 (charger casing), IP54 (Type 2 connector), IP20 (Schuko plug)
Leakage current protection: Tipo A 30mA AC + 6mA DC.
Casing material: ABS + PC
Operating temperature: -25°C ~ 55°C
Operating altitude: 2000m max
Operating humidity: 0%-95%
Dimensions (HxWxD): 195x70x50mm
Weight: 1.8Kg
